P5E-UAS
Construction Details
p5E-UAS was made by conventionally subcloning into p5E-MCS a HindIII-EcoRI fragment from pBUAS-E1b-RFP from Reinhard Köster, containing multimerized Gal4 upstream activating sequence (UAS) elements, followed by an adenovirus E1b TATA box and then by a piece of the carp beta-actin 5' UTR.
While the source construct nominally contained a 14x UAS element (originally made by Pernilla Rorth), sequencing shows that p5E-UAS only contains 10x UAS elements. Presumably there was an internal rearrangement that shed 4 UAS elements; it is not clear whether had already happened in the UAS-E1b construct, or whether it occurred in the Chien lab.
Functional tests of constructs using this element show strong activation by Gal4.
Crude Map

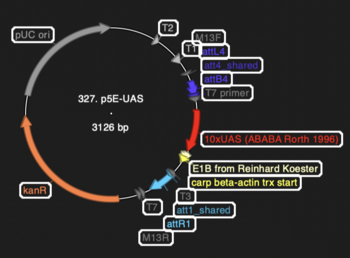

Screenshot from ApE showing locations of components:
327 p5E-UAS
Download the Sequence
- Annotated Sequence(Genbank format) and Full-Length Sequence with individual component sequences included(FASTA file)
